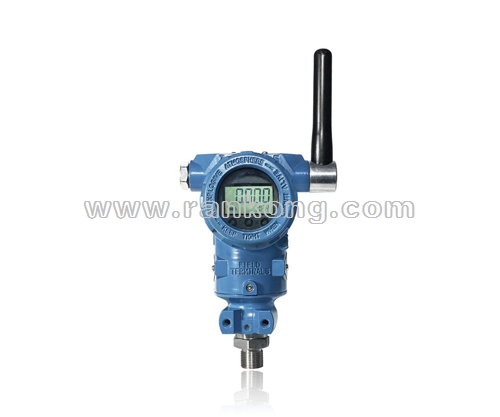

PMR316 Intelligent Wireless Pressure Transmitter

PMR316 Intelligent Wireless Pressure Transmitter

GPRS network available in many application areas with mobile signal;
? LCD real-time display with backlight;
? PC and mobile terminal data application;
? IP67 protection, moisture-proof, field environment available.



24-hour national online service:

025-84363968
PressureRange:0～2.5...100MPa
Guarenteeperiod:18months






1.PressureRange:0～2.5...100MPa

2.GaugePressure，SealingGaugePressue，AbsolutePressure

3.High－performence，all－solid－state，highreliability

4.Guarenteeperiod:18months

Pressure range -0.1MPa…0～20kPa…100MPa
Overpressure 1.5 times FS or 110MPa (min.value is valid）
Power supply 1.5mADC
Signal ≥70mVDC（0～20kPa，≥50mVDC）
Accuracy ±0.1%FS（min.） ±0.25%FS（typ.） ±0.5%FS（max.）
Long-term stability ±0.3%FS/year
Compensation temp. 0℃～50℃
Operation temp. -10℃～80℃
Storage temp. -40℃～100℃
Zero temp. coefficient ±0.02%FS/℃（typ.） ±0.04%FS/℃（max.）
FS temp. coefficient ±0.02%FS/℃（typ.） ±0.04%FS/℃（max.）
Housing Stainless steel 1Cr18Ni9Ti
Diaphragm Stainless steel 316L
O-ring Viton
Cable Polythene
Response time（10%～90%） ≤1ms
Insulation resistance 100MΩ，100VDC
Production IP65（cable connection）

Order Note：
1. We can also provide the user with voltage power supply product, the power supply is more than 9V; please note it when you select option codes;
2. When the user install flush diaphragm product at local place, please pay attention to correct sealing method to prevent the stress affecting product stability;
